1999 Engel 400 Ton 37.5 Oz with EC 100  - ES 2050/400 A


1999 Engel 400 Ton 37.5 Oz with EC 100 - ES 2050/400 A

Engel ES 2050/400 A

Age: 1999

Stock Number: 3996


Only 42,000 hours

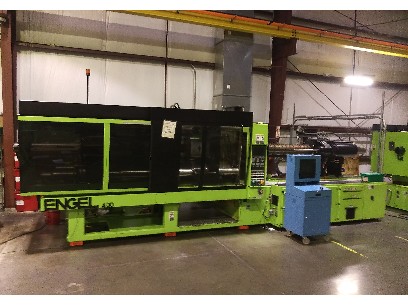

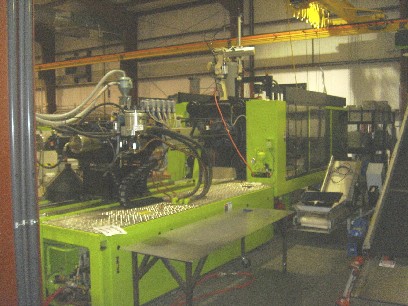

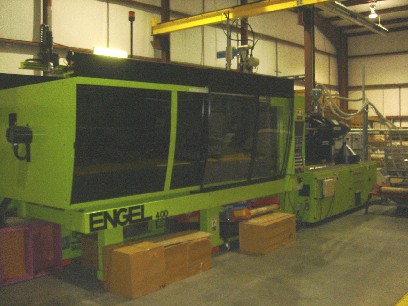

Click to view larger photo

Request A Quote On Our Stock Number: 3996 1999 Engel 400 Ton 37.5 Oz with EC 100  - ES 2050/400 ARequest a quote on stock# 3996
SpecificationDescription
Clamp Force: 400 US Ton
Shot Size: 37.5 Oz/70 mm
Can be downsized to:27.5 Oz/60 mm
Can be upsized to:50.5 Oz/80 mm
Platen Size: 44.56" x 44.56"
Tie Bar Spacing: 30" x 30"
Min/Max Daylight: 11.81" - 61.5"
Min/Max Mold Ht: 11.81" - 33.94"
Clamp Stroke: 27.56"
Ejector Stroke: 9.45"
Voltage: 460 V
Dimensions: 321" x 86" x 94" Revised
Weight: 49,000 lbs

Equipped With:
EC-100 Control
Xaloy 102 Barrel
D2 Screw
Ceramic Heater Bands
Ammeters on Barrel
Closed Loop Clamp Force Control
Mold Height Transducer
(1) Extra PID Mold Temp Controller
Filtroil
Air blow
(1) Hydraulic Valve Gate Shut Off via Accumulator
Alarm bell
Ammeters for barrel
Closed loop feed throat control
Also ERC 43 Robot Available (additional cost)
