2012 Engel 240 Ton 13.7 Oz Tiebarless Machine with CC 300 - Victory 1050/240 Hy-Spex
Engel Victory 1050/240 Hy-Spex
Age: 2012
Stock Number: 4020
Under Power (2) Available

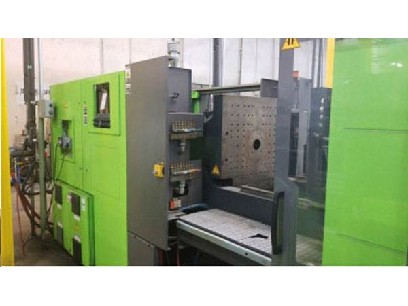

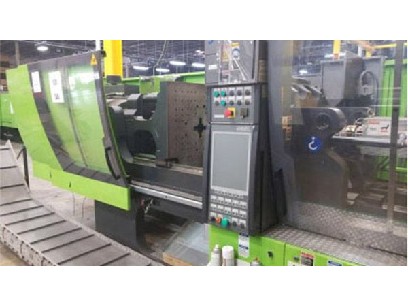

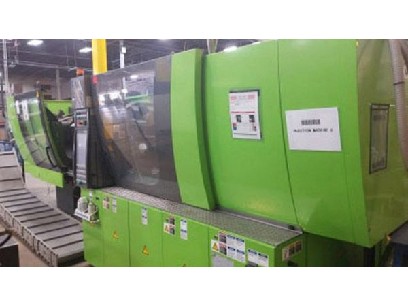

Click to view larger photo
| Specification | Description |
|---|
| Clamp Force: | 240 |
| Shot Size: | 13.7 Oz |
| Platen Size: | 34.65" x 32.68" |
| Tie Bar Spacing: | NA |
| Drop Area Between C-Frame | 25.59" |
| Min Mold Ht: | 11.81" |
| Max Opening Stroke: | 29.53" |
| Max Daylight: | 41.34" |
| Max Mold Wt on Moving Platen: | 3,307 lbs |
| Ejector Stroke: | 7.09" |
| Voltage: | 460 |
| Dimensions: | Confirm |
| Weight: | 26,800 lbs |
Equipped With:
CC 300 Closed Loop Control
Ecodrive
Core Pull
Air Blow
Interface for Ejector Back Confirmation
Robot Interface
(4) programmable I/O's
Ceramic Heater Bands
Freely Programmable Sequence Editor
