Engel 110 Ton 7.14 Oz Electric with LC 200 - e-max 440/110 US

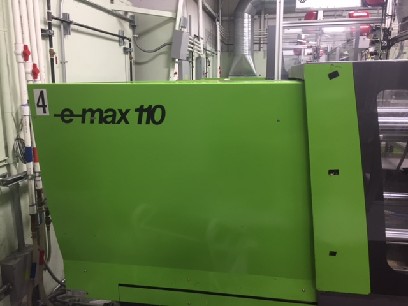

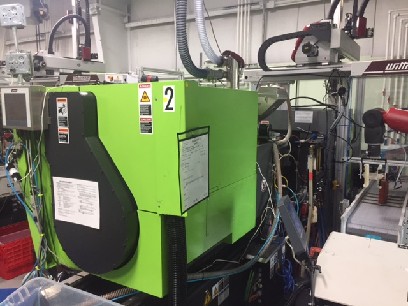

Engel e-max 440/110 US
Age: 2010
Stock Number: 3826
Robot Not Included
Click to view larger photo
Specification
Description
Clamp Force:
110 US Tons
Shot Size:
7.14Oz/ mm
Platen Size:
25.59" x 23.62"
Tie Bar Spacing:
18.11" x 17.72"
Min/Max Mold Ht:
5.9" - 16.5"
Clamp Stroke:
13.78"
Ejector Stroke:
3.94""
Voltage:
460V
Dimensions:
157" x 51" x 75"
Weight
9,700 lbs
Equipped With:

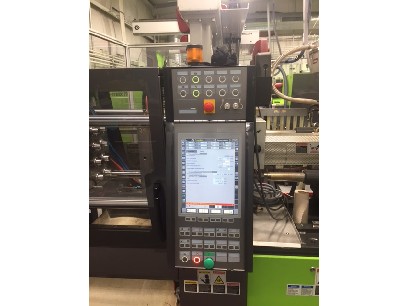

LC 200 with 15" TFT
Prepared for Hydraulic Core Pull (Power Pack Required)
Autoprotect

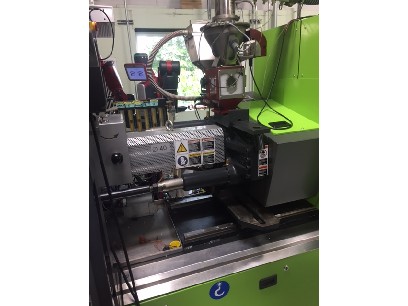

Swivelling Inj Unit
M9 Barrel
S8 Screw
Push Buttom for Screw Retaction W/O Rotating
Access Rights Via Password
Interface for Freely Programmable Contacts
Ejector Back Confirmation
Interface for Robot
230V Outlet 16A
e-factory support
Air Blow
Auto- Lubrication System (Grease)
Water Flow Control (6 circuits)
Closed Loop Feed Throat
